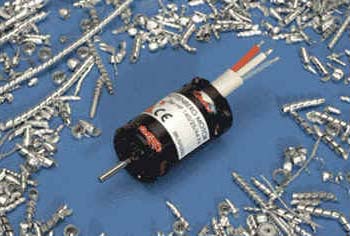

Neodym Magnets Brushless Sensorless Motor
- Rec. # Cells : 6-14
- Dimensions (dia x L mm) : 29x47.5
- Weight (g) : 110
- Output shaft (mm) : 3.175
* Performance (Prop, Voltage, Current, RPM)
- Graupner 7X3", 7.4V, 7.5A, 11,280RPM
- Graupner 7X3", 8.6V, 9.4A, 12,350RPM
- Graupner 7X3", 9.8V, 11.3A, 13,600RPM
- Graupner 7X3", 10.6V, 12.5A, 14,500RPM
- Graupner 8X4", 7.3V, 11A, 9,800RPM
- Graupner 8X4", 9.7V, 16.1A, 11,400RPM
|
|
