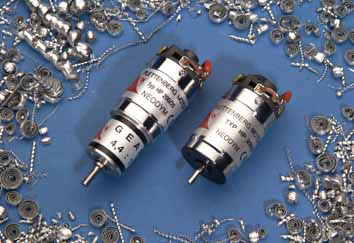

The motors of the series HP 200 are Plettenberg's smallest
motors. They can be compared to the size and operation range
of the motor class speed 480, but of course the series HP
200 has higher power. The motors are built of the usual
high quality materials. Special features are the double
ball bearing, neodym magnets, core plate 0.35 mm thick,
tempered shaft. The motors are available with direct drive
or with flanged gearbox.
- Rec. # Cells : 6-12
- Dimensions (dia x L mm) : 29x56
- Weight (g) : 135
- Output shaft (mm) : 3.175
* Performance (Prop, Voltage, Current, RPM, Thrust)
- WeMo Tec Mini Fan 480, 8.7V, 30.7A, 6.40N
|
|
