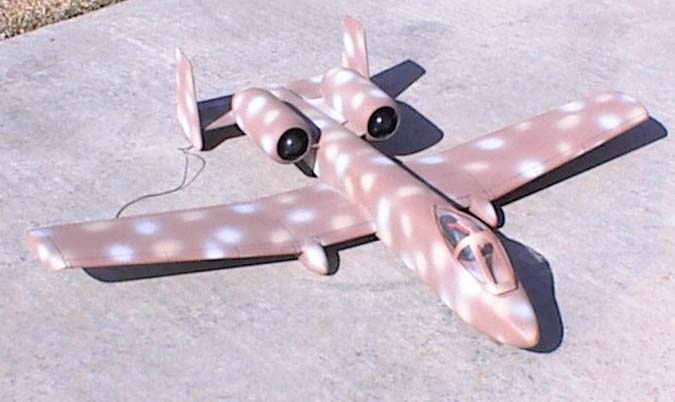

Mini A-10 Warthog



  Á¦Á¶¿ø

  K & A Models Unlimited

  »óÇ°¹øÈ£

  KAM015

  ÆǸŰ¡°Ý

  125,000¿ø



»óÇ°¼³¸í
»óÇ°»ç¾ç
  Wing Span 31.0 in Length
  Wing Area 153 sq in Flying Weight 18.0-20.0 oz
  Wing Loading
18.0-20.0 oz/sq ft Airfoil Clark Y
  Control A/E/T
»óÇ°±¸¼º
  built-up fuse, foam core wing and hardwares
»çÁø
ÇÊ¿ä»ç¾ç
  3 ch. radio, 2 KP 44mm EDF units, ESC(15A), 8*500AR battery

Á¦Á¶¡¤ÆǸſø »óÇ°¼³¸í



Well here it is. Our new little A-10 WARTHOG. If you want a small jet twin that has a low cost to set up and is very easy to fly the A-10 WARTHOG would be an ideal choice. The A-10 does not require a bungee launcher which is nice and we are getting flight times of about 4 1/2 minutes and speeds about the same as a normal speed 400 plane. The construction is very straight forward and the A-10 builds very fast due to all of the vacuum formed parts like the top turtle deck, tail cone, nacels and L G pants. The top rear turtle deck is even marked for the angels of mounting the motor pylons for the fans. Any novice pilot can fly this mini jet due to the 10% clark-y airfoil used. So get a mini A-10 WARTHOG and start having some fun! "A-10 Updates" There is some talk about our A-10 on the net and we thought we would pass on some information that might help you out. 1: we have discovered that the little KP44 fans like to run better without the scale ABS nacelles on so use them just for static show if you want to pick up the performance of the plane. Your speed will increase by 10 to 12 mph. 2: we discovered that the tailcone diameter at the rear of the fans should be at 1 7/16" for the best performance. 3: the motors are rated at 4.8 volts. It is very important that you run the motors in series when using 8 cells. We would not recommend running the motors in anyother fashion.

  • Precision cut balsa & ply parts
  • Foam core wings
  • Vacuum formed turtle deck, nacels, tail cone & landing gear pants
  • Clear raised lined canopy
  • Plans & instructions

Motors - KP 44mm EDF unit
BEC Motor control - 15amp
Battery Pack - 8 cell 500AR
