JW



  Á¦Á¶¿ø

  Canterbury Sailplanes

  »óÇ°¹øÈ£

  CTB002

  ÆǸŰ¡°Ý

  153,000¿ø



»óÇ°¼³¸í
»óÇ°»ç¾ç
  Wing Span 54 in Length
  Wing Area 432 sq in Flying Weight 32 oz
  Wing Loading
10.7 oz/sq ft Airfoil Joe Wurts design
  Control A/E
»óÇ°±¸¼º
  EPP foam wing, fuse and hardwares
»çÁø
ÇÊ¿ä»ç¾ç
  2 ch. radio with servos

Á¦Á¶¡¤ÆǸſø »óÇ°¼³¸í

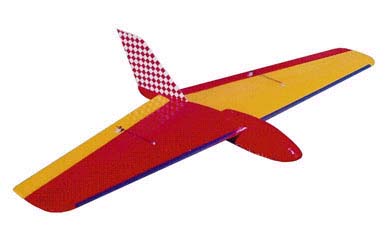

The JW was designed with one thing in mind, Dynamic Soaring. Joe Wurts designed the airfoil to maximize the speed and performance of Dynamic Soaring with an EPP wing. This plane has the torsional strength to withstand the high speeds achieved while DS'ing. Now you can have the performance of a composite plane with the durability of an EPP plane. DSing is not all it can do. It is a fast and fun plane to fly on the front side of the slope too!

Kit includes:

  • High density EPP (30kg/m3) foam wing with carbon spars
  • High Density EPP foam fuse
  • Corflute tail section
  • Hardware including rods and horns
  • Instruction manual

Specifications:

  • Wing Span: 1.35m/54"
  • Wing Area: .27sq/m, 432 Sq. In/
  • Airfoil: Joe Wurts design
  • Weight: 900gm/32 oz
  • Wingloading: 10.67oz. sq./ ft

Extra Items required to complete the JW:

  • 2 channel Radio control
  • Elevon Mixer

Other Items you will need to build the JW:

  • 3M M77 spray contact cement
  • Xacto knife
  • Sanding Block
  • 35-50mm strapping tape
  • Colored packing tape or Ultracoat for covering
